DC-DC Buck Converter LM2596 Adjustable with display

LM2596 DC-DC Buck Converter Adjustable with display

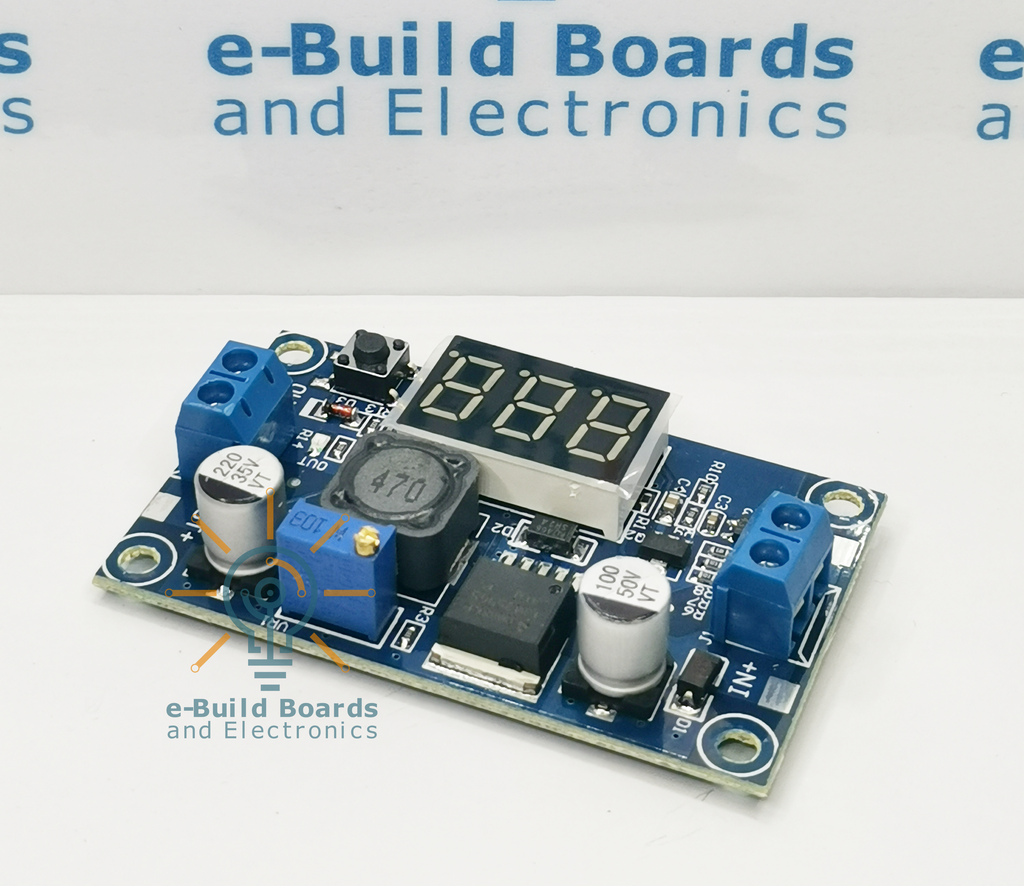

This particular DC-DC Buck Converter with 7 Segment Display LM2596 shows the current input and output voltages. This DC-DC Buck Converter LM2596S is a step-down power module with adjustable voltage range capable of driving a load up to 3A with high efficiency. Using this module with current above2.5A (or output power greater than 10W) requires the addition of heatsink to prevent overheating.

Specifications:
✅Input Voltage: 4V to 35V
✅Output Voltage Range: 1.23V to 30V
✅Max Output Current: 3A
✅Adjustment: 25-Turn Trimpot
✅Efficiency: up to ~93%
✅Switching Frequency: 150 kHz
✅Built-In Protection: thermal shutdown and current limit
✅Dimensions: PCB Size: 68x35mm
