DC Motor, 130 Size 4.5V ~ 9V DC

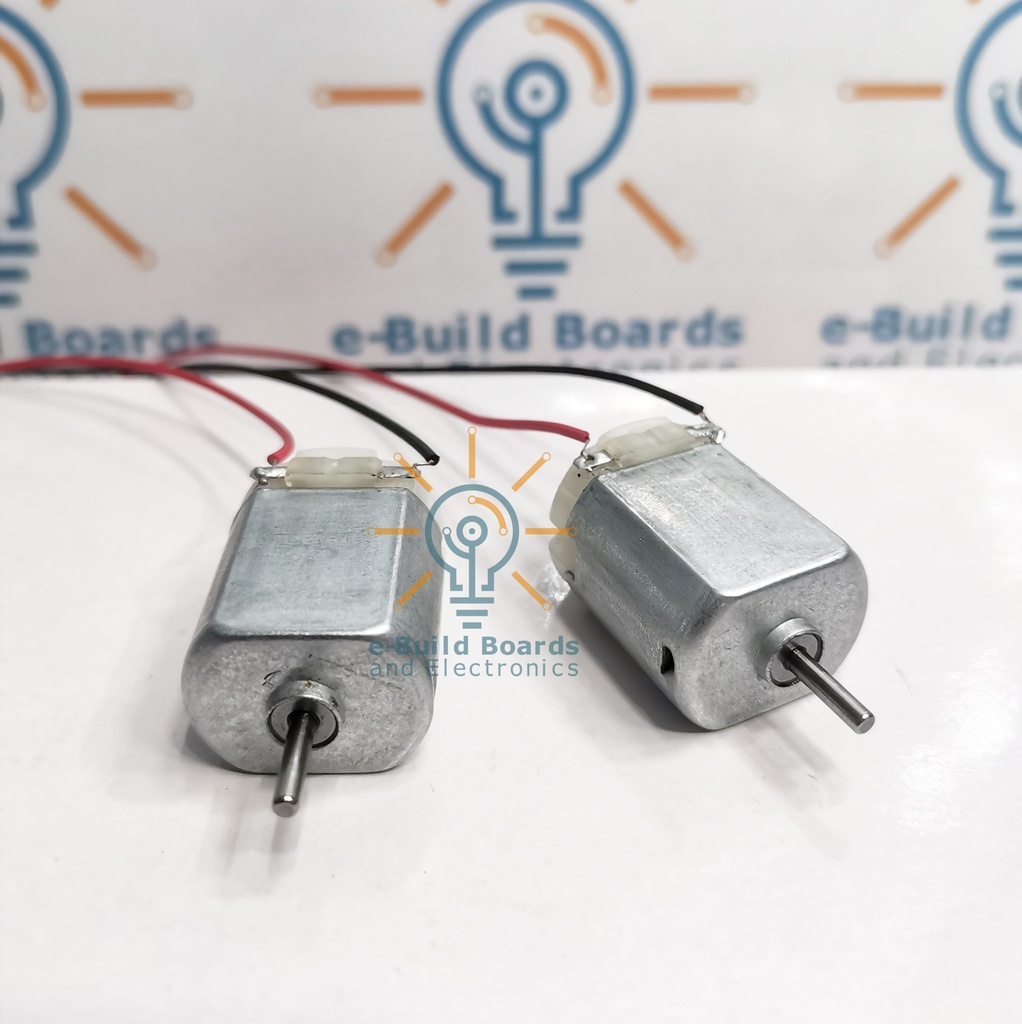

130 DC Motor

This is a standard ‘130 size’ DC motor. It comes with a wider operating range than most toy motors: from 4.5 to 9V DC, This range makes them perfect for controlling with most of the Arduino Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting.

✅SPECIFICATION:
•Operating Temperature: -10°C ~ +60°C
•Rated Voltage: 6.0VDC
•Rated Load: 10 g*cm
•No-load Current: 70 mA max
•No-load Speed: 9100 ±1800 rpm
•Loaded Current: 250 mA max
•Loaded Speed: 4500 ±1500 rpm
•Starting Torque: 20 g*cm
•Stall Current: 500mA max
•Body Size: 27.5mm x 20mm x 15mm
•Shaft Size: 8mm x 2mm diameter
•Weight: 17.5 grams
