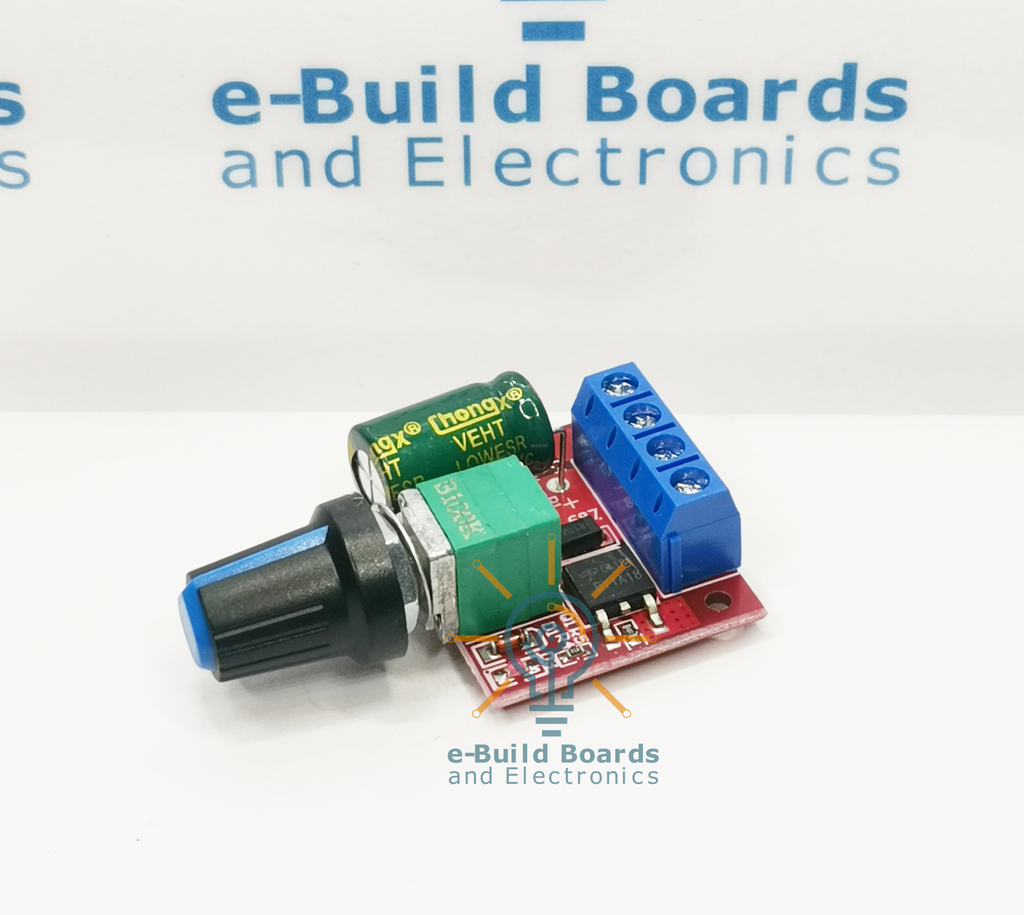

DC Motor Driver Module 5A 3V-35V Speed Control

DC Motor Driver Module 5A 3V-35V Speed Control

The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. Adjusting the potentiometer knob can change the governor output duty cycle and the motor speed changes. DC motor governor input is DC, not directly connected to AC (for example: household 220V AC), otherwise it will burn out! Do not reverse the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.

Specifications:
✅Working voltage: DC4.5V-35V
✅Output current: 0-5A
✅Output power: 90W (maximum)
✅Quiescent current: 7u A (standby state)
✅PWM duty cycle: 1%-100%
✅PWM frequency: 20khz
✅Size: length 30MMx width 26MM (without handle) x height 14MM
✅Weight: 0.013KG
