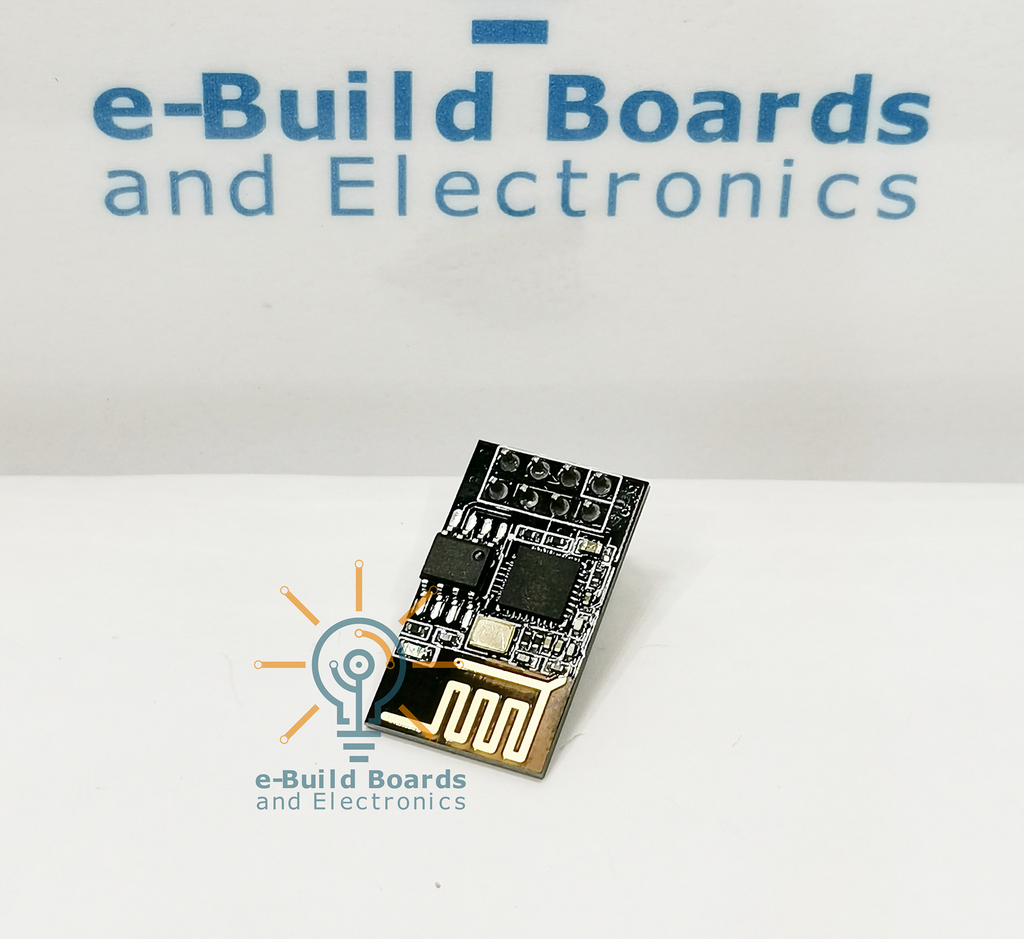

ESP8266 ESP-01 Wifi Module

Wifi Module ESP8266 ESP-01

This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.
Note: The ESP8266 Module is not capable of 5-3V logic shifting and will require an external Logic Level Converter. Please do not power it directly from your 5V dev board.
Note: This new version of the ESP8266 WiFi Module has increased the flash disk size from 512k to 1MB.

Specifications:
✅Features : 802.11 b/g/n
✅Wi-Fi Direct (P2P), soft-AP
✅Integrated TCP/IP protocol stack
✅Integrated TR switch, balun, LNA, power amplifier and matching network
✅Integrated PLLs, regulators, DCXO and power management units
✅+19.5dBm output power in 802.11b mode
✅Power down leakage current of <10uA
✅1MB Flash Memory
✅Integrated low power 32-bit CPU could be used as application processor
✅SDIO 1.1 / 2.0, SPI, UART
✅STBC, 1×1 MIMO, 2×1 MIMO
✅A-MPDU & A-MSDU aggregation & 0.4ms guard interval
✅Wake up and transmit packets in < 2ms
✅Standby power consumption of < 1.0mW (DTIM3)
