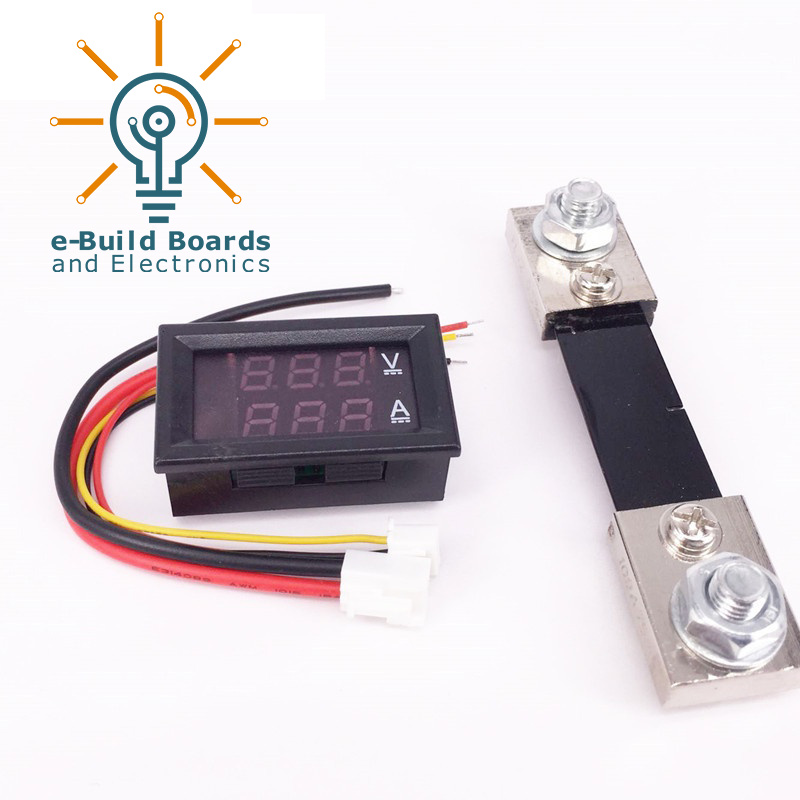

Mini Digital Voltmeter Ammeter Dual Display 0-100V 100A with Shunt

✅DC0-100V 100A Digital Voltmeter Ammeter 2 in1 Multimeter DC4-30V Voltage Ampere Meter Volt Amp Gauge Panel Dual Display
with Shunt

✅100A voltage and current meter is equipped with an external shunt.

✅Technical Parameters:
Voltage measurement range: 0.0V-100V
Current test range: 0-10A, 0-100A
Power supply range: DC4-30.0V (Note: If the voltage exceeds 30V, an external independent power supply is required)
Voltage error: ± 0.1%
Current error: ± 1%
External shunt specifications: 75 mOhm
Working current: <20mA
Refresh rate: about 300mS once
Display mode: double three-digit 0.28 "LED digital tube
Display color: red + red, red + blue. Optional
Lead length: 15cm
Dimensions: 48 x 29 x 22 mm, length X width X thickness;
Mounting hole: 46 x 27 mm
Working temperature: -10 ℃ ~ 65 ℃
