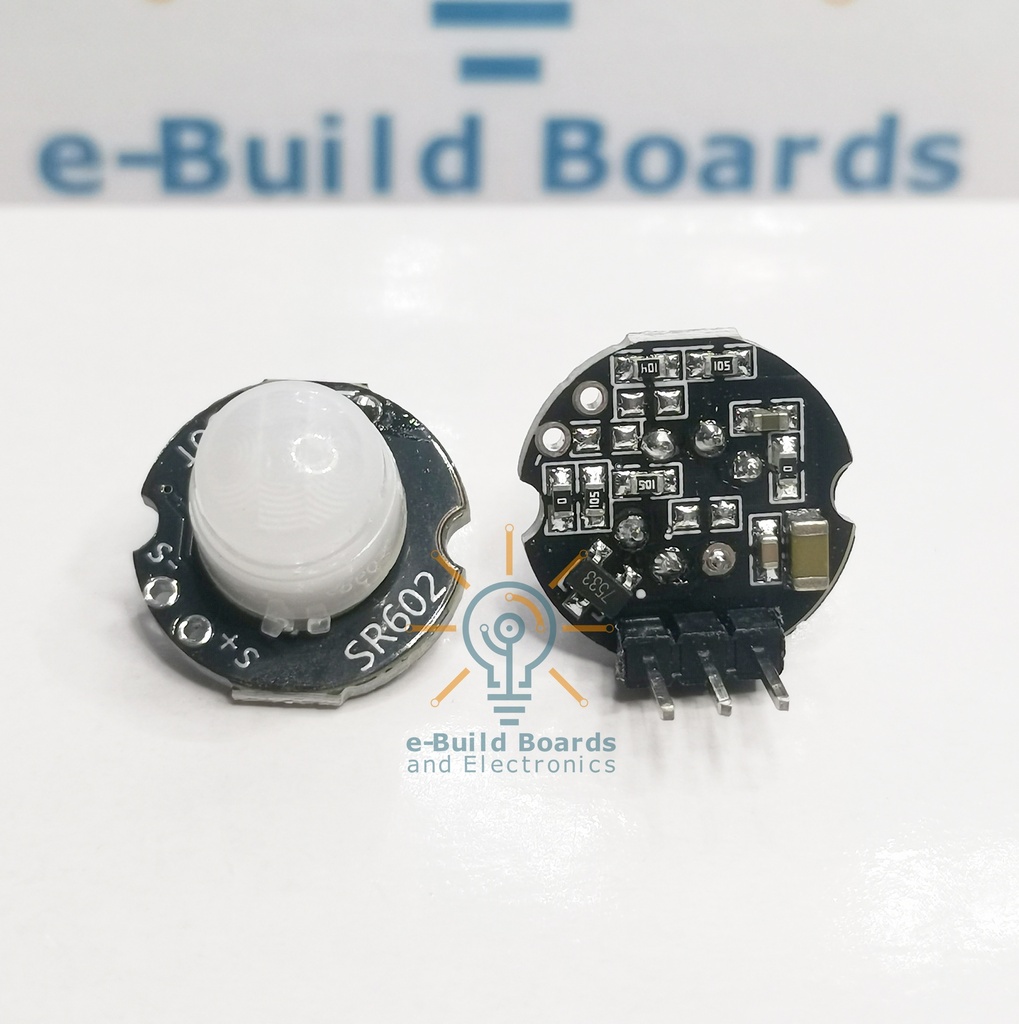

PIR Motion Sensor HC-SR602 Module

HC-SR602

Features and uses:

This module has high sensitivity, fast response, small static power consumption, small size, easy to install, and is installed.
The lens, the pin header has been soldered, and the power supply is provided without debugging. Can be used for body sensor lights, alarms, security,
Access control on-demand imaging, automatic equipment for agriculture, forestry and mining.

Key points:
1. The high level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.
Refer to the relevant

Working parameters:
✅Pyroelectric human body infrared sensor module, model: SR-602
✅Sensing distance: up to 5 meters; recommended 0-3.5M.
✅Output: high level, H=3.3V, L=0V
✅Power supply DC: 3.3V-15V
✅Quiescent current: 20uA
