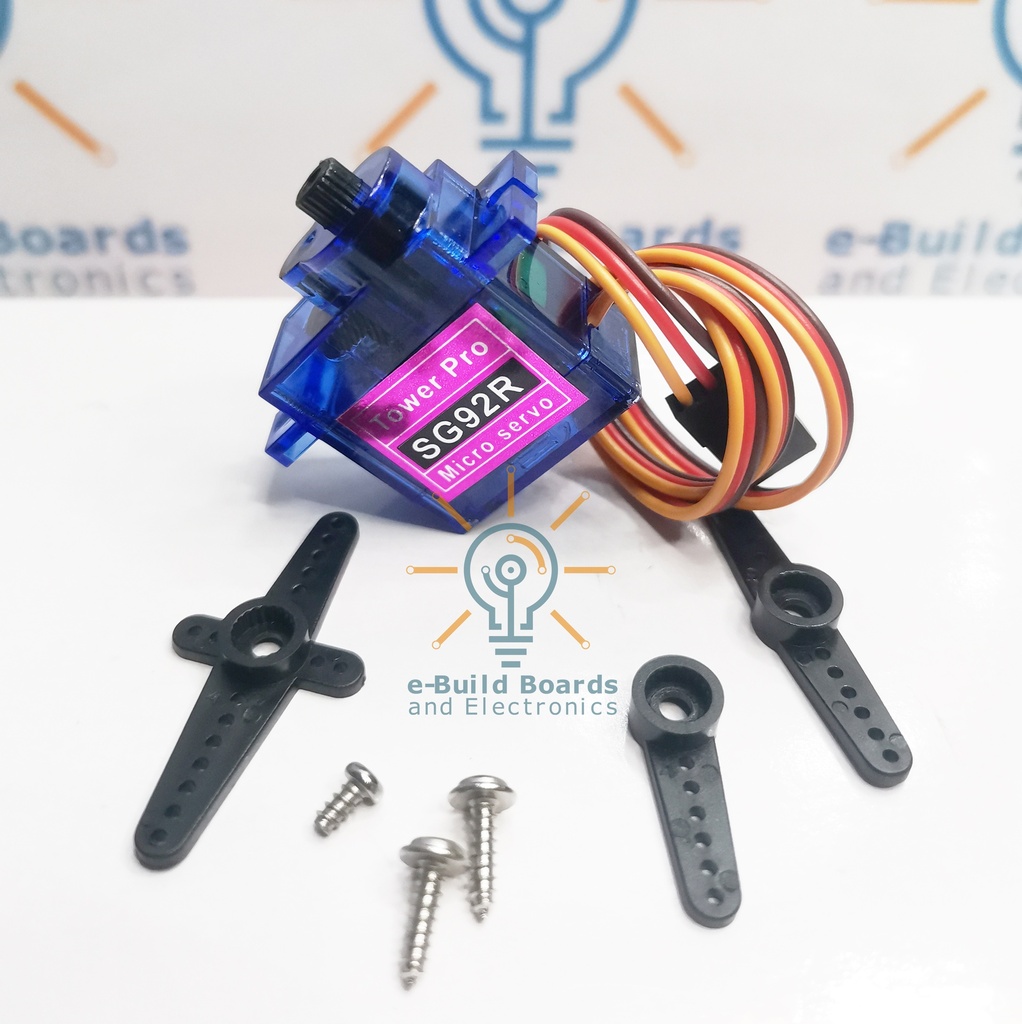

Servo Motor SG92R 9g, Plastic Gear Motor

Servo Motor SG92R 9g, Plastic Gear Motor

A small servo that is the best for your Drone, RC , Robotics projects. Any servo code, hardware or library can control this servos. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino or by just wiring up with the Servo library. Comes with a few horns and hardware.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

Brand Name: Tower Pro
Item NO.: SG92R
Weight: 9g
Dimension: 23×12.2x27mm
Stall torque: 2.5kg /cm(4.8v)
Gear type: Nylon with carbon fiber
Operating speed: 0.1sec /60degree (4.8v)
Operating voltage: 4.8v
Temperature range: 0℃_ 55℃
Dead band width:1us
servo wire length: 25 cm
Servo Plug: JR (Fits JR and Futaba)
Usage: Tobotics, 3D models , high speed jets and RC airplane, 250 450 RC helicopter.
servo arms.
Screws included and fit with Futaba servo arm
It’s universal “S" type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved
